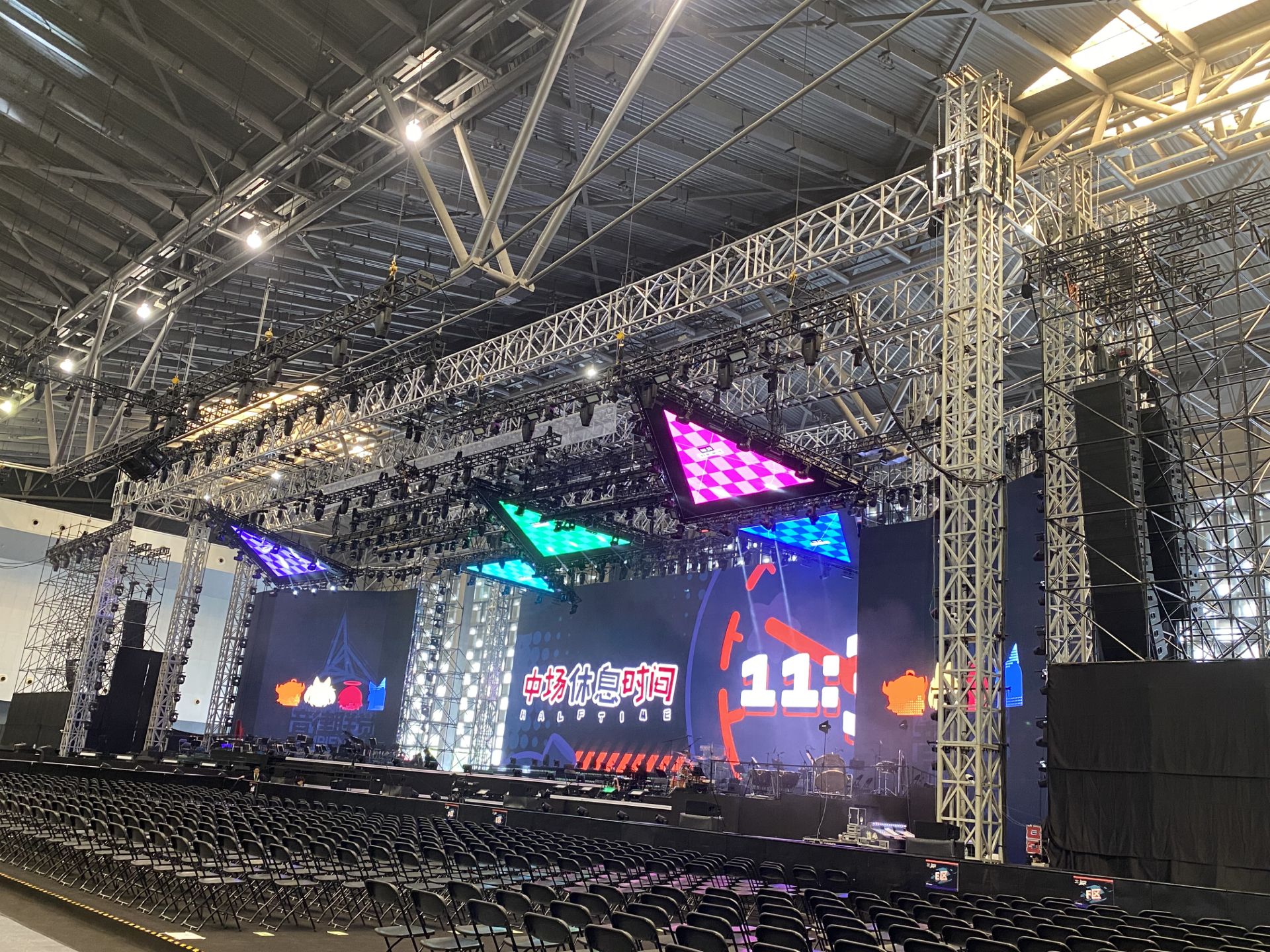

Concert Tour Use Large Span Truss Structure with Wings

Flat roof structure can be used for safety Fast and easy installation Comes with complete internal supporting structure and connection accessories Provide complete structural calculation report and installation manual PVC roof with optional color Manuel or electric hoist are both available
  • RF-003

  • CHLEH

Availability:
Quantity:

Truss Description

Description

CL Gable Roof Truss Structure consists of 520mm square truss with wall thickness of 3mm. The reasonable structure guarantees the safety. The high quality PVC tarpaulin protects the stage from the rain, and it's with different colors available. CL truss size could be customized. Detailed structural analysis and drawing could be provided at your request.




See easy set-up video


Specifications

Max. Dimension Max. Stage Size Overall Height Clearance Certificate
74.03'x30,94' 39.30'x28.75' 30.94' 23.36' TUV, CE

roof truss with wing   02

Powder Coated


CL Truss could be powder coated in variaties of colors according to RAL number. Except truss, other steel or aluminum items could be powder coated as well. Flat or high gloss finish are both available for us.
