Fabric Led Lightbox
CHLEH
| Quantity: | |
|---|---|
Product Description

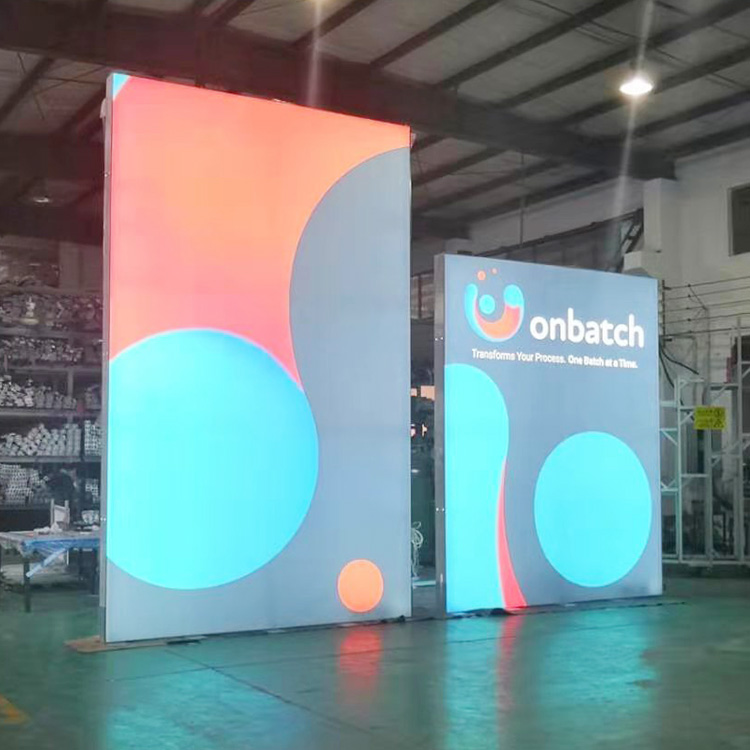

SEG light boxes are widely used for decorating kinds of retail stores nowadays, it's proved to be a very effective way to attract visitors' and passengers' attention.
They can be represented in multi-forms, such as free standing, wall mounted and ceiling suspended.
Free standing at the door for attracting and welcoming customers, wall mounted are used for showing your different kinds of products or promotion, ceiling suspended used for decoration and makeing your store more fashionable. vibrant graphics show both product and your enthusiasm, at the meantime, being easily replaceable can also save you much when there are different promotions in different seasons.
Specifications
| Light-Box Dimensions | Weight | Packing | Graphics Replacement | Printing | Case Dimensions |
| 37"x79" | 46 lbs. | Flight case/wooden case/carton case | Available | Dye sublimation | 43"W x 12"D x 12"H |
| Light Source | Operation Power | Operation Voltage | Power Frequency |
| Edgelit Led | 18W | 24VDC | 50/60HZ |
| Input Current | Operation Temperature | Storage Temperature | LED Quantity |
| 1000mA | -20~50°C | -20~50°C | 9 pcs |
| Color | Color Temperaure | LED Lumen | Dimensions |
| White | 6000-6500K | 150LM | 470*14.7*25mm |
| LED Part No | LED Chip NO | Operation Voltage | Pitch Lenses |
| 3030 | OSRAM | 24VDC | 15*45 |
Disassembly and Transportation
How can a frameless light box be easily assembled? Follow the following steps, you’ll get a complete light box soon.
Step 1: Place the frame pieces in front of you
Step 2: Connect the frames with straight connectors & corner connectors and tighten them with screws and an Allen key
Step 3: Make the connectors for LED and transformer connected in right way
Step 4: Install graphic with 4 corners first, then push the graphic into center area on all four sides until graphic is inserted completely and smoothed out
Are you still worrying about carrying a heavy stand with you? Why not choose a flight case instead?
A flight case is perfect for transportation and popular among kinds of trade shows and events.
Strong panels with thick foam can protect frames with LED lights inside well, wheels at bottom will free your hands, both you and your stand deserves one!
